Dryers
RTD 60
IFB

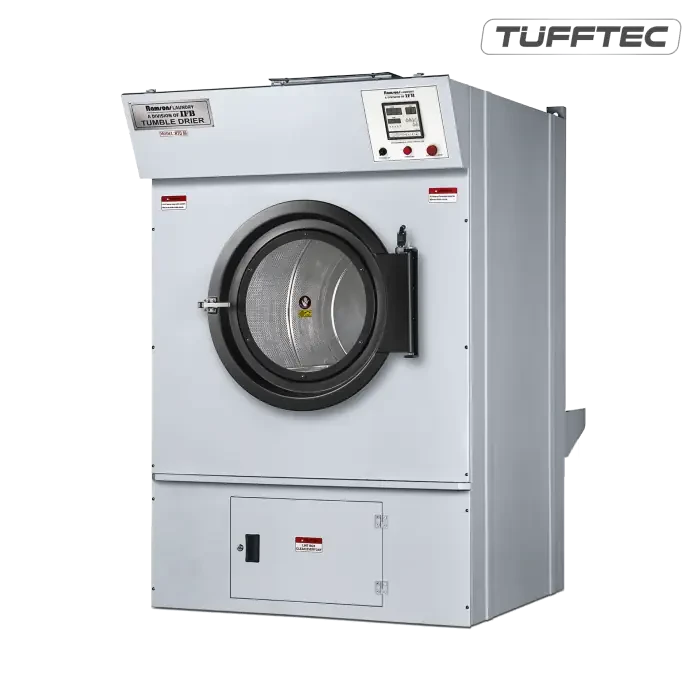

RTD 60 Tumble Dryer 60 kg

The Tufftec Tumble Dryer has a special radiator/ heat exchanger design that maximises drying performance and efficiency to deliver perfect drying. In addition, it come equipped with a programmable microprocessor control system. Cooling down damper and fire supression systems are also available as options.

Extra Information

Download
Brochure
GENERAL
Capacity (kg)
60
Net Weight (kg)
840
Dimensions (W x D x H - mm)
1360 x 1990 x 2315
Drum Volume (L)
1495
Drum Diameter (mm)
1380
Drum Depth (mm)
1000
Door Open Diameter (mm)
750
Warranty
1 Year
Included Components
User Manual, Power cable
Net Quantity
1 Unit
PERFORMANCE
Drive Motor (hp)
2
Exhaust Motor (hp)
2
AESTHETICS
Inner Basket Construction
Stainless Steel
Outer Body
MS Powder Coated
KEY FEATURES
PLC Control
Yes
Self Cleaning Lint Mesh
Yes
Steam/Electric Radiator
Yes
Front Loading Open Pockets
Yes
Stainless Steel Inner Drum
Yes
Easy Loading and Unloading
Yes
Heating Options
Steam or Electric or Gas or Dual(steam and electric)
SAFETY FEATURES
Fire Suspention System - Optional
Yes
Emergency Stop Button
Yes
Safety Door Limit Switch
Yes
TECHNICAL SPECIFICATIONS
Steam Inlet (in)
1, 1/4
Heater (kW)
27
Condensate Steam Outlet (in)
1
Steam Pressure (Bar)
4 - 5
Steam Consumption (kg)
80
Hot Air Outlet Size (mm)
200 x 200
Total Connected Load For Steam (kW)
3
Total connected load for electricity (kW)
30
MANUFACTURING,PACKAGING & IMPORT DETAILS
Manufacturer's Details
IFB Industries Ltd, 3B, 3C, Bommasandra Jigani Link Road, Bommasandra Industrial Area, Bengaluru, Karnataka 560099
Packer's Details
IFB Industries Ltd
Country Of Origin
India
