RTD 30

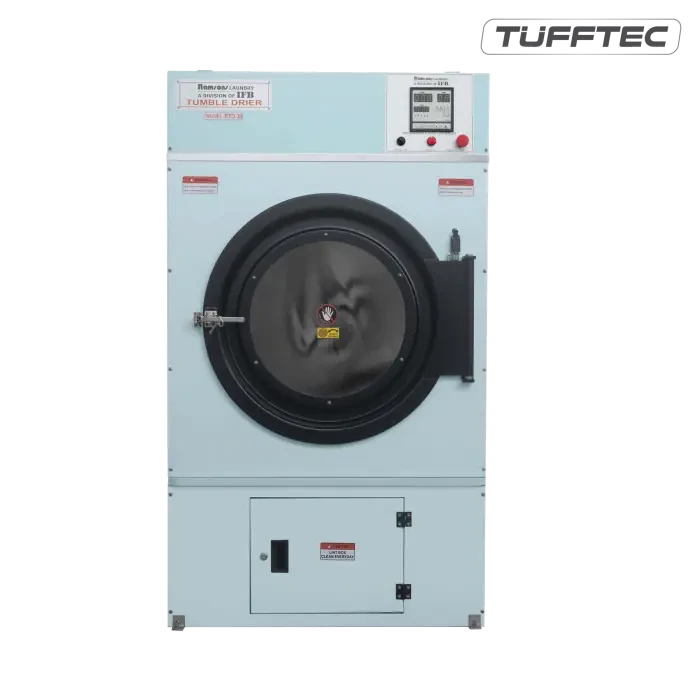

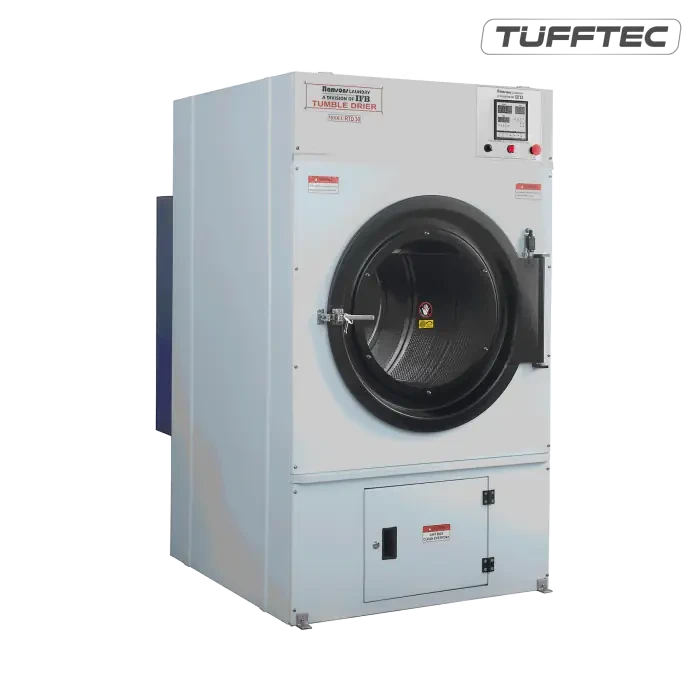

RTD 30 Tumble Dryer 30 kg

The Tufftec Tumble Dryer has a special radiator/ heat exchanger design that maximises drying performance and efficiency to deliver perfect drying. In addition, it come equipped with a programmable microprocessor control system. Cooling down damper and fire supression systems are also available as options.

Specifications

GENERAL

Capacity (kg)

Net Weight (kg)

500

Dimensions (W x D x H - mm)

1050x1320x1870

Drum Volume (L)

1127

Drum Diameter (mm)

1220

Drum Depth (mm)

1050

Door Open Diameter (mm)

750

Warranty

1 Year

Included Components

User Manual, Power cable

Net Quantity

1 Unit

PERFORMANCE

Motor (hp)

Drive Motor (hp)

Exhaust Motor (hp)

AESTHETICS

Inner Basket Construction

Stainless Steel

Outer Body

MS Powder Coated

KEY FEATURES

PLC Control

Yes

Self Cleaning Lint Mesh

Yes

Steam/Electric Radiator

Yes

Front Loading Open Pockets

Yes

Stainless Steel Inner Drum

Yes

Easy Loading and Unloading

Yes

Heating Options

Steam or Electric or Gas or Dual(steam and electric)

SAFETY FEATURES

Fire Suspention System - Optional

Yes

Emergency Stop Button

Yes

Safety Door Limit Switch

Yes

TECHNICAL SPECIFICATIONS

Steam Inlet (in)

1, 1/4

Condensate Steam Outlet (in)

Steam Pressure (Bar)

4 - 5

Steam Consumption (kg)

Hot Air Outlet Size (mm)

150 x 200

Total Connected Load For Steam (kW)

1.5

Total connected load for electricity (kW)

25.9

MANUFACTURING,PACKAGING & IMPORT DETAILS

Manufacturer's Details

IFB Industries Ltd, 3B, 3C, Bommasandra Jigani Link Road, Bommasandra Industrial Area, Bengaluru, Karnataka 560099

Packer's Details

IFB Industries Ltd

Country Of Origin

India

RTD 30
