RC 150 Plus
IFB

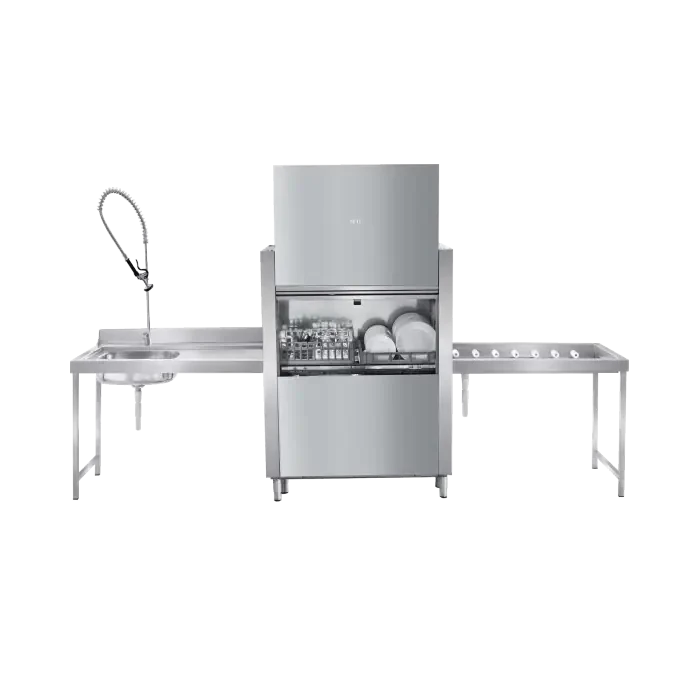

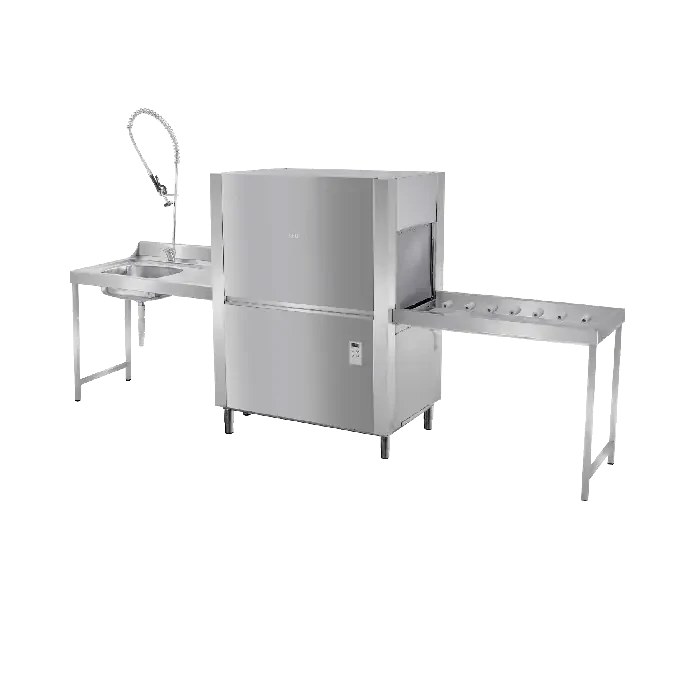

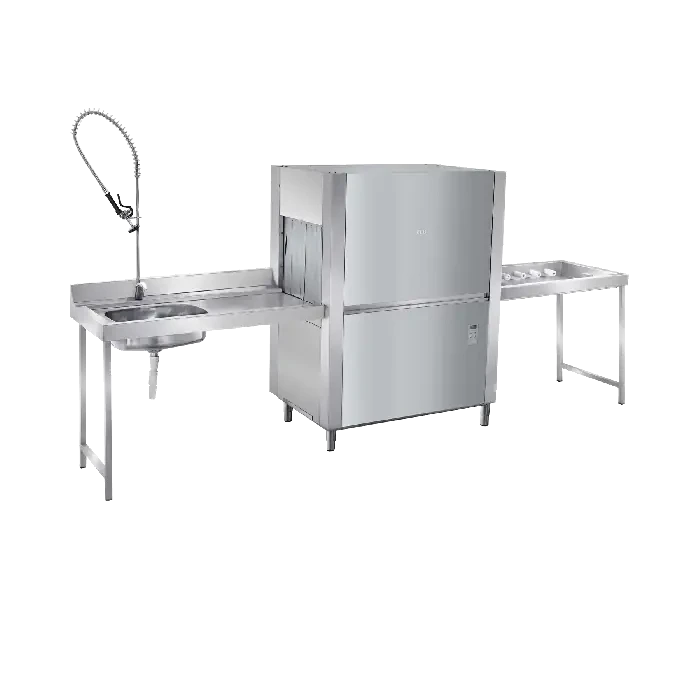

RC 150 Plus Rack Conveyor Dishwasher

This multi-speed rack conveyor dishwasher can wash up to 120 baskets per hour and is ideal for small and medium-size operations. Its compact dimensions and versatility can profitably substitute manual washing without increasing running cost. It can be easily installed in various kitchens since the flow of dishes on the machine can be inverted to suit the kitchen layout. The hygienic wash quality is perfectly complemented with water and detergent savings.

Extra Information

GENERAL
Net Weight (kg)
202
Dimensions (W x D x H - cm)
115 x 77 x 160
Rack Size (cm)
50 x 50
Warranty
1 Year
Included Components
Detergent Pump, Rinse aid Pump,Warranty card, Power Cable, Installation & User Manual ,Electrical ckt diagram, Installation Lay out, Rat mesh,Water inlet hose, Drain Hose, Glass basket, Dish Basket, Foot leg for leveling
Net Quantity
1 Unit
PERFORMANCE
Output with 50˚C Water Temperature
60 - 120
AESTHETICS
General Construction
Stainless Steel
Door Construction
Stainless Steel
KEY FEATURES
Electronic Softstart
Yes
Evolution drain system and drain pump
Yes
Full double skin construction
Yes
Partial Double skin construction
Yes
Moulded Tank Bottom
Yes
Fully Moulded Tank
Yes
Wash system with DuoFlo pump
Yes
Protect environment improvement system
Yes
Smart Screen LCD interface
Yes
ProSmart LED type electronic interface
Yes
No. of standard wash programmes
2
Drain Pump
Optional
Hygienic Wash
Yes
SAFETY FEATURES
ProStrain shock-proof composite material tank filter
Yes
Shock Proof Plastic Pump Filter
Yes
TECHNICAL SEPCIFICATIONS
Water Consumption (L/Cycle)
160
With 15*C water feed (kW)
28.5
With 50*C water feed (kW)
22
With 50*C water feed (kW) and heat recovery system
23.5
Electric Connection (V/Hz/ph/N)
400/50/3/N
Required Electric Power (Kw/Amp)
28.5/50
Required Electric Power with Dryer (kW/Amp)
35/63
Required Water Pressure (Bar)
1.5 - 4
Required Water TDS
40 to 100ppm, Conductivity lower than 300 Micro Siemens
Rinse Temperature (°C)
80
Wash Temperature (°C)
60
MANUFACTURING,PACKAGING & IMPORT DETAILS
Importer's Details
IFB Industried Ltd
Packer's Details
Eurotec S.R.L
Country Of Origin
Italy
