ProTech 613 Plus

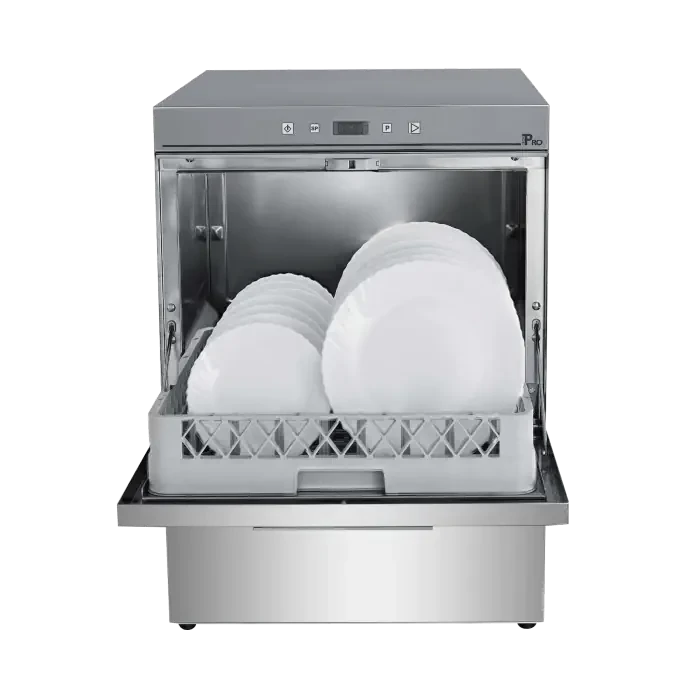

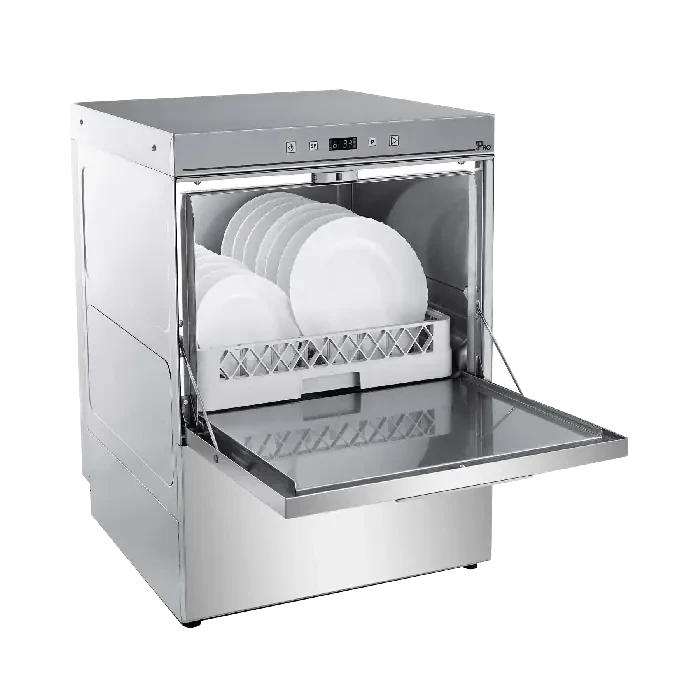

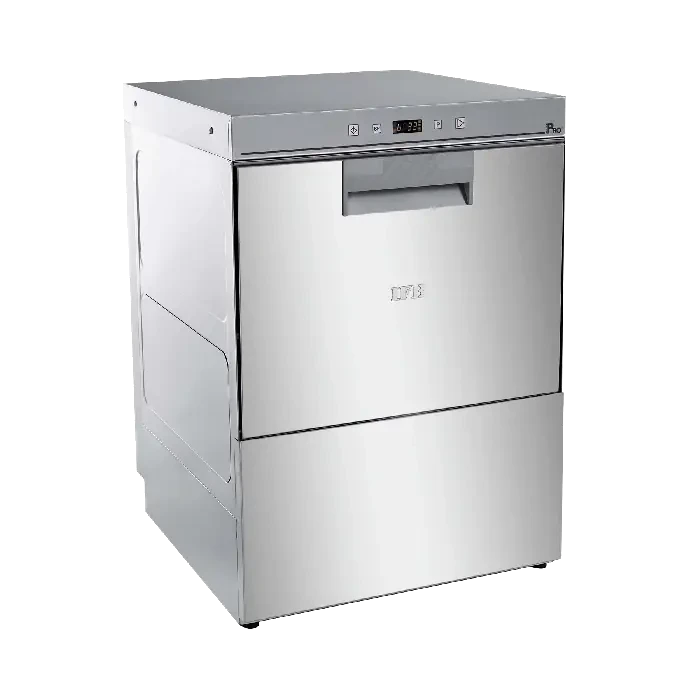

ProTech 613 Plus Under Counter Dishwasher

The ProTech 613 Plus is 82 cm tall with a door opening of 36.5 cm and deep drawn rack guides. Dishware up to 32.5 cm tall can be cleaned in this under counter dishwasher that operates silently with its dual flow pump and double skin door. It is equipped with Pro-Strain shock-proof composite material tank filter and a double filter on the pump intake. Water and detergent consumption is low, even as wash quality is high and hygienic.

Extra Information

Download
Brochure

Specifications

GENERAL

Net Weight (kg)

Dimensions (W x D x H - cm)

57.5 x 60 x 82

Rack Size (cm)

50 x 50

Door Opening (W x H - mm)

36.5

Warranty

1 Year

Included Components

Detergent Pump, Rinse aid Pump,Warranty card, Power Cable, Installation & User Manual ,Electrical ckt diagram, Installation Lay out, Rat mesh,Water inlet hose, Drain Hose, Glass basket, Dish Basket, Foot leg for leveling

Net Quantity

1 Unit

SHOW LESS

PERFORMANCE

Output with 50˚C Water Temperature

Maximum Glass Height (cm)

32.5

Plate Length (inch)

AESTHETICS

General Construction

Partial Double Wall

Door Construction

Double Wall

KEY FEATURES

Partial Double skin construction

Yes

Moulded Tank Bottom

Yes

Deep Drown, Easy Clean Rack Guides

Yes

Prodose

Yes

Composite material double filter on pump intake

Yes

Wash system with DuoFlo pump

Yes

Wash/Rinse with Lower Rotating Arms

Yes

Archimedes Drain System

Yes

Protect environment improvement system

Yes

ProSmart electronic interface

Yes

ProSmart LED type electronic interface

Yes

No. of standard wash programmes

Double skin insulated door

Yes

ProSelf - self clean cycle

Yes

Drain Pump

Optional

Special Cycles

ProLong, Prowater, ProGlass, ProEco

Hygienic Wash

Yes

SAFETY FEATURES

ProStrain shock-proof composite material tank filter

Yes

Shock Proof Plastic Pump Filter

Yes

TECHNICAL SEPCIFICATIONS

Water Consumption (L/Cycle)

2.5

Electric Connection (V/Hz/ph/N)

400/50/3/N

Cycles (secs)

3 (60 - 90 - 180)

Required Electric Power (Kw/Amp)

6.8/16

Required Water Pressure (Bar)

2 - 4

Required Water TDS

40 to 100ppm, Conductivity lower than 300 Micro Siemens

Rinse Temperature (°C)

Wash Temperature (°C)

MANUFACTURING,PACKAGING & IMPORT DETAILS

Importer's Details

IFB Industried Ltd

Packer's Details

Eurotec S.R.L

Country Of Origin

Italy

ProTech 613 Plus
