RVWE 45

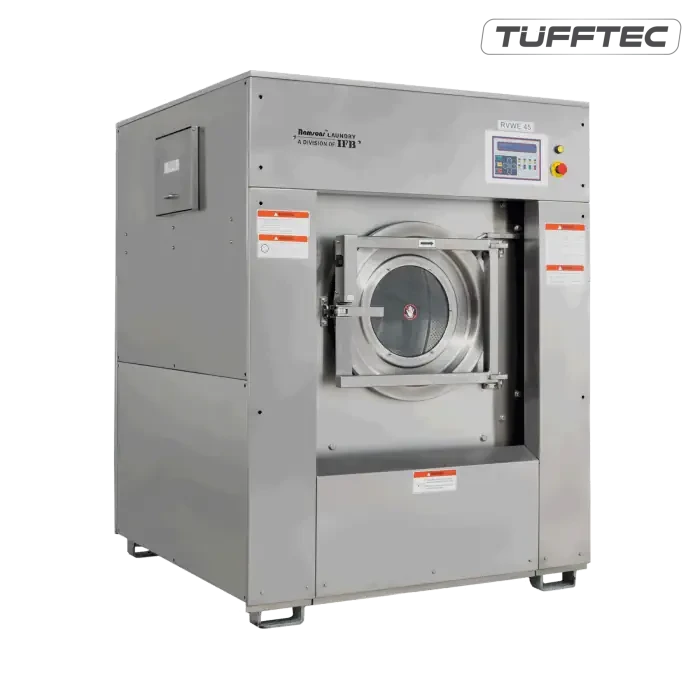

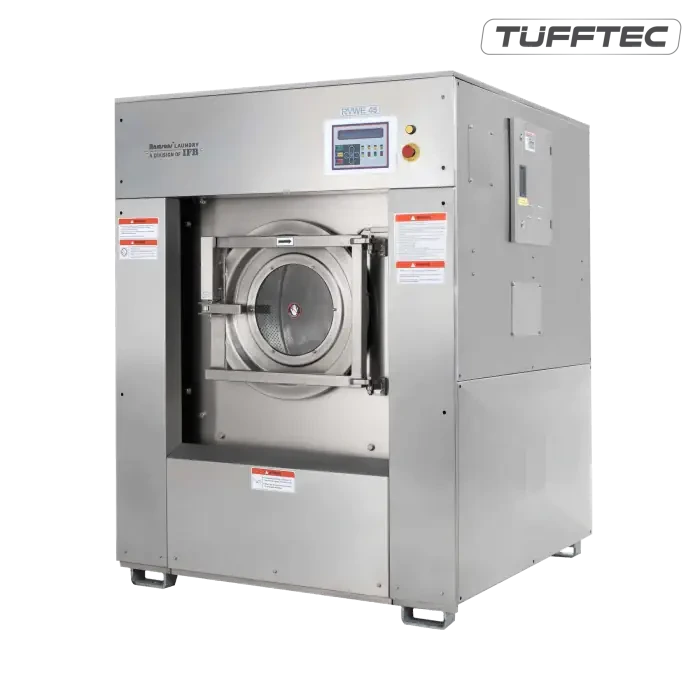

RVWE 45 Washer Extractor 45 kg

This Tufftec Washer Extractor is designed for professional needs. Innovative features like the LCD display makes it easy to use, select and store wash programs. Robust stainless steel construction prevents rusting and ensures superior durability. Minimal time to fill and discharge water improves productivity and maximises savings.

Specifications

GENERAL

Net Weight (kg)

1400

Dimensions (W x D x H - mm)

1380 x 1510 x 1875

Capacity (kg)

Drum Volume (L)

450

Drum Diameter (mm)

970

Drum Depth (mm)

605

Door Open Diameter (mm)

525

Warranty

1 Year

Included Components

User Manual, Power cable, Foundation Bolts, Water Inlet Stainer

Net Quantity

1 Unit

PERFORMANCE

Motor (hp)

7.5

Extraction Maximum Speed (RPM)

805

G-Factor (In)

350

AESTHETICS

Construction

Stainless Steel

KEY FEATURES

Japanese Inverter Drive

Yes

Fully programmable PLC

Yes

High Speed Extraction

Yes

Wash Programs

24 Main & 8 Sub Programs

High Torque Drive And Heavy Duty Motors

Yes

Fully Suspended Soft Mount Type

Yes

Stainless Steel Chemical Compartments

Yes

Heavy Duty Bearing Housing And Pulley Construction

Yes

Front Loading And Unloading

Yes

Operating Temperature (° C)

Up to 90

Minimal Time To Fill And Discharge Water

Yes

Soft Start And Stop

Yes

Heating Options

Steam or Electric or Dual

SAFETY FEATURES

Auto Or Manual Door Lock

Yes

Emergency Stop Switch

Yes

TECHNICAL SPECIFICATIONS

Steam Inlet (in)

1/2

Drain Outlet Size (in)

Heater (kW)

22.5

Steam Pressure (Bar)

4 - 5

Steam Consumption (kg)

Total Connected Load For Steam (kW)

5.6

Total connected load for electricity (kW)

28.60

MANUFACTURING, PACKAGING & IMPORT DETAILS

Manufacturer's Details

IFB Industries Ltd, 3B, 3C, Bommasandra Jigani Link Road, Bommasandra Industrial Area, Bengaluru, Karnataka 560099

Packer's Details

IFB Industries Ltd

Country Of Origin

India

RVWE 45
